Overview

Among the primitive-oriented samples, this is the main entry point for comparing the appearance of textures, image-based normals, and procedural normals in one place

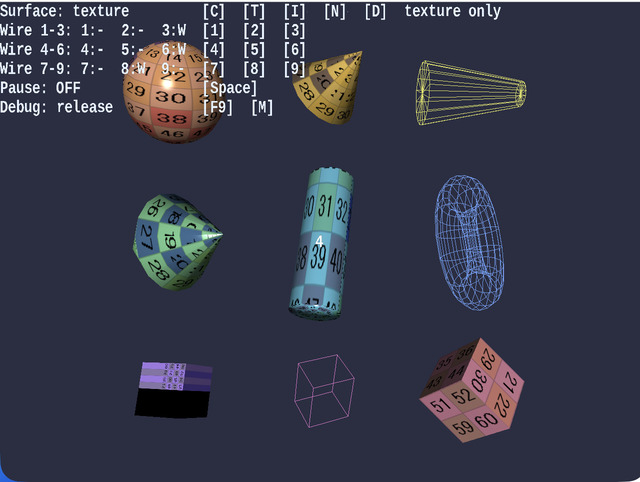

You can compare "textured appearance", "normal-map differences", and wireframe while keeping the same composition
Message is used only for the numbered labels in the 3x3 layout, while operation guidance and status display are handled by the standard HUD on the WebgApp side

Open ./shapes.html
Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

Primitive: generates basic shapes such as sphere / cone / donut / cube
Shape.setWireframe: toggles wireframe display
Texture: loads num256.png
Texture.buildNormalMapFromProceduralHeight: generates noise / dots normal maps
SmoothShader: handles texture + normal map and wireframe through the same entry point. Flat shading can also be toggled as a function on the shader side
Message: overlays only the primitive number labels in the 3x3 arrangement

When switching the surface mode with C / T / I / N / D, confirm that only the differences between texture / image normal / procedural normal change while the geometry stays the same
Confirm that texture comparison with T, image-normal comparison with I, and procedural-normal comparison with N / D can all be read within the same sample
Confirm with the 1 - 9 wireframe toggles that the topology is as expected, and that line display does not break even when the surface mode changes
Confirm that across the nine shapes, including cube / cuboid / mapCube, both texture and normal comparison remain usable without severe breakage

C: solid-color display
T: texture display
I: image-normal display
N: noise-normal display
D: dots-normal display
1 - 9: toggle wireframe for the corresponding shape on or off
Space: pause or resume rotation
Touch buttons: C / T / I / N / D, 1 - 9, and Pause use the same key names as the keyboard controls
