proctex

English | 日本語

Overview

• Built on WebgApp, this sample lets you inspect procedural height-map generation and normal-map generation from Texture.js at the same time

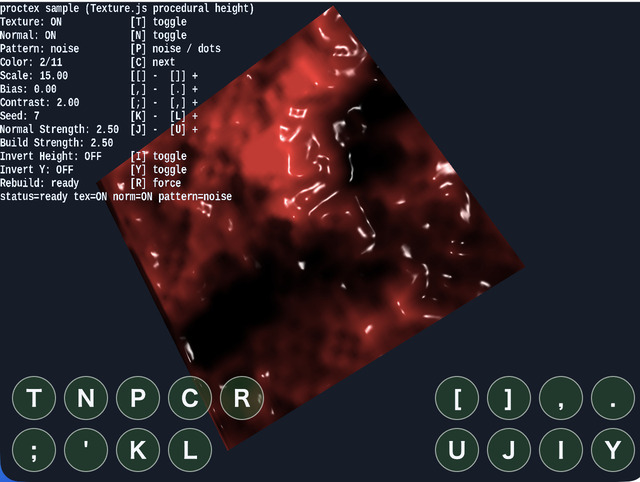

• It uses the same height map both as a color texture and as a normal map, then displays a slowly rotating cube created with Shape.mapCube in the center of the screen
• By using WebgApp input and HUD, the sample keeps the key-operation guide and the current parameters visible in the same screen

How to Run

• Open ./proctex.html
• Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

webg Features Used

• Texture.makeProceduralHeightMapPixels: procedural height-map generation
• Texture.buildNormalMapFromHeightMap: normal-map generation from the height map
• Shape.mapCube: UV-unwrapped cube
• SmoothShader: texture + normal-map rendering
• InputController / Touch: unifies keyboard input and touch-button input
• WebgApp HUD: displays the operation guide and current parameters

Checkpoints

• Confirm that the appearance changes immediately when texture on/off and normal-map on/off are toggled
• Change pattern / scale / contrast / bias / seed and confirm that the generated pattern is rebuilt
• Confirm that changing normal strength changes how strongly the surface relief is emphasized
• Confirm that touch buttons are shown even on desktop and that the same key operations can be pressed there directly

Controls

• T: toggle texture on or off
• N: toggle the normal map on or off
• P: switch the pattern (noise / dots)
• C: switch the shader color preset
• [ / ]: decrease / increase scale
• , / .: decrease / increase bias
• ; / ': decrease / increase contrast
• K / L: decrease / increase seed
• U / J: increase / decrease normal strength
• I: toggle invertHeight on or off
• Y: toggle invertY on or off
• R: force regeneration with the current parameters, although regeneration normally happens automatically
• The touch buttons are shown with the same key assignments and can be inspected directly even on desktop

Regeneration Behavior

• P / [ / ] / , / . / ; / ' / K / L / I / Y trigger automatic regeneration when changed
• R is used when you want to explicitly rerun regeneration while keeping the same parameters
