Overview

This sample validates the ModelAsset returned by Primitive.js with ModelValidator, converts it into Shape objects with ModelBuilder, and displays the result

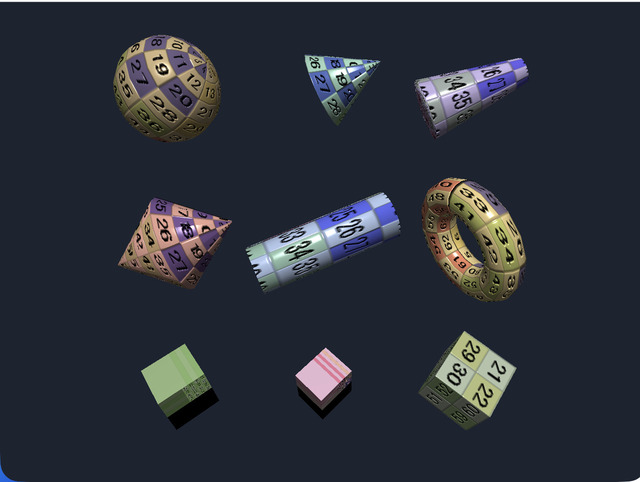

Multiple shapes are arranged with normal maps, but the main characteristic is that the shape-generation path is unified as Primitive -> ModelAsset -> validate -> build rather than writing Shape data directly
WebgApp.js is used so initialization, message display, and the loop are collected through the high-level API

Open ./model_shape.html
Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

WebgApp: standard initialization, render loop, and operation-guide display
Primitive: generates basic primitives as ModelAsset
ModelAsset: shared entry point for data representation
ModelValidator: validates consistency of geometry, animation, nodes, and related data
ModelBuilder: constructs Shape groups from ModelAsset
SmoothShader: draws regular textures together with normal maps
Texture.buildNormalMapFromHeightMap: generates a normal map from the same image

Confirm that the ModelAsset returned by Primitive can be passed directly to the validator
Confirm that normal-mapped rendering still works even for Shape objects created through ModelBuilder
Compared with shapes, confirm that this sample is meant to follow the processing flow Primitive -> ModelAsset -> validate -> build rather than to compare visual appearance
Confirm that toggling wireframe and toggling the normal map on or off does not break the display control even though the generation path changes
