json_loader

English | 日本語

Overview

• This sample loads and displays the ModelAsset JSON file specified in main.js as-is
• JSON exported by gltf_loader or collada_loader with the D key can be shown again in this sample by matching the file name
• It calls the JSON facade from WebgApp.loadModel(), making it a sample that obtains ModelAsset data and runtime objects without caring about format differences
• The current validation file modelasset.json contains two clips, ArmatureAction_skeleton_0 and ArmatureAction_skeleton_0_copy, created by duplicating the same source clip

How to Run

• Open ./json_loader.html
• Use a browser with WebGPU support, and check the Help Panel and CommandPalette together with the sample when needed

webg Features Used

• WebgApp: standard initialization, render loop, and Help Panel display
• CommandPalette: groups clip control, wireframe, screenshot, JSON export, and camera reset
• WebgApp.loadModel: high-level entry point for the JSON facade
• ModelLoader: bundles JSON load / validate / build / instantiate
• ModelAsset.load: loads the JSON file
• ModelAsset.getClipNames: inspects the clip list contained in the JSON
• ModelAsset.build: constructs shapes, skeletons, and animations from the JSON
• ModelBuilder.animationMap: accesses runtime animations from clip IDs
• build() result helpers: instantiate() / createNodeTree() / bindAnimationBindings() / getAnimation() / getAnimationNames() / startAllAnimations() / playAllAnimations() / setAnimationsPaused()
• EyeRig(type="orbit"): orbit viewpoint based on the bounding box

Checkpoints

• Confirm that the JSON specified by MODEL_ASSET_FILE passes the validator and can be rendered directly

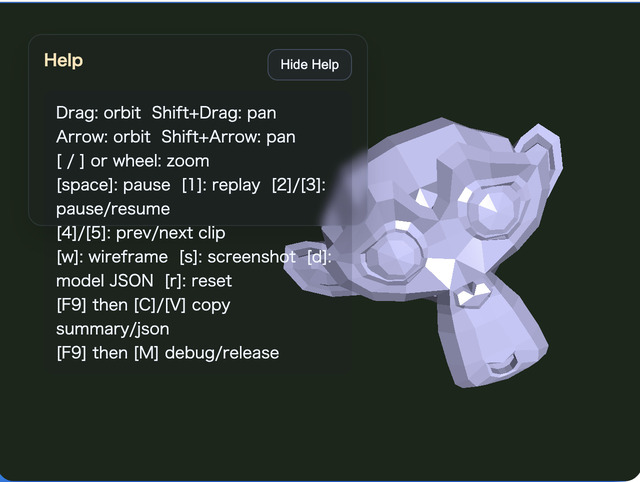

• Confirm that the Help Panel displays file / model / orbit / target / anim / clip / wireframe state so the information needed for a viewer can be followed on screen
• Confirm that inside the sample, the runtime returned by the facade is used to unify node restoration and animation binding, and that the connection can be checked through getAnimation() / getAnimationNames() instead of direct animationMap access
• Confirm that 4 / 5 switches the target clip and that 1 / 2 / 3 act on the currently selected clip
• Confirm that 4 / 5 can switch between ArmatureAction_skeleton_0 and ArmatureAction_skeleton_0_copy
• Confirm that 1 can restart the selected clip by name with restartAnimation(clipId)
• Confirm that 2 / 3 can pause and resume the selected clip individually with pauseAnimation(clipId) / resumeAnimation(clipId)
• Confirm that the camera distance is set automatically from the bounding-box size so the whole model remains in view
• Confirm that Shift + Arrow and Shift + Drag move the camera target in parallel, making it easy to bring details to the center
• Confirm that W toggles wireframe, S saves a screenshot, and R restores the initial framing
• Confirm that the CommandPalette can run clip replay / pause / resume / selection, wireframe, screenshot, JSON export, and camera reset
• Confirm that the Help Panel is used for current values and operation hints, while the CommandPalette is used for changing settings and running commands

Controls

• Drag / arrow keys: orbit camera rotation
• Shift + Drag / arrow keys: pan the camera target
• Mouse wheel / [ / ]: zoom
• Space: pause animation
• 1: replay the selected clip
• 2: pause the selected clip
• 3: resume the selected clip
• 4: select the previous clip
• 5: select the next clip
• W: toggle wireframe
• S: save a screenshot
• D: download the current JSON again
• R: return the camera to the initial position based on the bounding box
• / or double tap the canvas: open the CommandPalette
