janken

English | 日本語

Overview

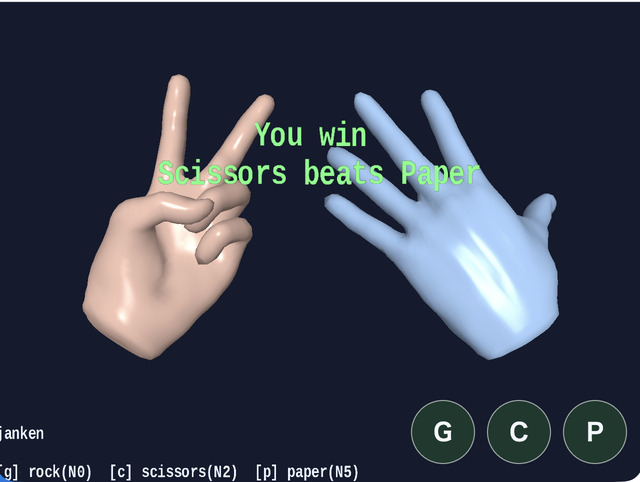

• This sample plays rock-paper-scissors by using the hand model from samples/gltf_loader/hand.glb together with AnimationState
• Two hands are displayed at the same time, with the left side acting as the user and the right side acting as the app
• The user chooses a hand with G / C / P, while the app chooses its hand from a random value on the same frame
• Touch buttons are also shown at the bottom of the screen, and on desktop you can press G / C / P directly there as well
• hand.glb is built only once, and then two hands for player / CPU are created with instantiate() from that runtime, so geometry and GPU buffers are shared while animation runtime progresses independently
• Each hand has its own Action and AnimationState, so even when the same asset is used, the animations can play separately
• The operation guide and current state are aligned through app.message.setLines(), while only the win / loss result is displayed at the center with a short Message scaled to 2x
• The two hands are shown from a slightly pulled-back, slightly upward-looking view and rolled about 30 degrees to the left and right
• Hand transitions for rock-paper-scissors share entryDurationMs = 250, so each next hand is reached in about 0.25 seconds

How to Run

• Open ./janken.html
• Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

webg Features Used

• WebgApp: initializes Screen / Shader / Space / Input / Message together, builds the shared runtime once with app.message.setLines() and loadModel(..., { format: "gltf", instantiate: false }), then creates two hands with runtime.instantiate()
• Action: plays the hand key ranges as N0 / N2 / N5 actions
• Message: displays a short ASCII win / loss title largely at the center

Checkpoints

• Confirm that G corresponds to hand pose N0=12-13, C corresponds to N2=4-5, and P corresponds to N5=10-11
• Confirm that even if the same hand is entered repeatedly, the animation restarts through a self-transition
• Confirm that the guide is shown at the bottom, the status at the top, and only the result is shown in the large center Message

Controls

• G: play rock
• C: play scissors
• P: play paper
• Space: reset the round and the display to the initial state
• Touch buttons: show G / C / P on both desktop and mobile and handle them with the same key names as the keyboard

Notes

• This sample uses the pose mapping of the hand asset as follows
• Rock: N0=12-13 on the hand
• Scissors: N2=4-5 on the hand
• Paper: N5=10-11 on the hand
• AnimationState is not used to improve playback quality itself, but to organize which hand action should be started
• In janken, AnimationState.setState(..., force: true) is called on every input event so the action can restart even when the same hand is chosen
• The two hands are generated separately through runtime.instantiate(), so even though they share the same mesh resources, the runtime state of Skeleton and Animation is separate
• In the current hand.glb, G uses N0 12-13, C uses N2 4-5, and P uses N5 10-11
• To build a stable idle state as "slowly playing about the first 10% of the transition from rock to paper", it would be more natural to add a dedicated idle key or a separate intermediate pose than to rely only on the current pattern definitions based on integer key ranges
