Overview

• This sample loads the Collada (.dae) file specified in main.js, normalizes it into ModelAsset, and then displays it
• It calls the Collada facade from WebgApp.loadModel() and demonstrates the shared entry point that covers everything from parsing to generating ModelAsset and runtime objects
• The loaded ModelAsset can be downloaded as a JSON file with the D key
• When exporting Collada (.dae) from Blender, the loader assumes files are exported in Y-up
• The loader's model-origin policy uses the skeleton root as the origin for skinned models and the mesh node as the origin for non-skinned models

How to Run

• Open ./collada_loader.html
• Use a browser with WebGPU support, and check the Help Panel and CommandPalette together with the sample when needed

webg Features Used

• WebgApp: standard initialization, render loop, and Help Panel display
• CommandPalette: groups animation control, wireframe, screenshot, JSON export, and camera reset
• WebgApp.loadModel: high-level entry point for the Collada facade
• ModelLoader: bundles DAE text load / parse / ModelAsset conversion / build / instantiate
• ModelAsset: holds the data representation and supports JSON download
• ModelAsset.getClipNames: inspects the clip list before build
• ModelBuilder: builds shapes, skeletons, and animations from ModelAsset
• ModelBuilder.animationMap: accesses runtime animations from clip IDs
• build() result helpers: instantiate() / createNodeTree() / bindAnimationBindings() / getAnimation() / getAnimationNames() / startAllAnimations() / playAllAnimations() / setAnimationsPaused()
• EyeRig(type="orbit"): orbit viewpoint based on the bounding box

Processing Flow

• The sample calls WebgApp.loadModel(COLLADA_FILE, { format: "collada" ... }) and enters the Collada facade through the shared loader entry point
• ModelLoader reads the DAE text and hands parsing and normalization to ColladaShape
• ColladaShape gathers mesh / skeleton / animation / node data into ModelAsset format
• After that, ModelBuilder assembles Shape / Skeleton / Animation / Node, and the sample uses the build result as the runtime
• Unlike glTF, the Collada loader side does not have a static-bake plan, but the final runtime helpers still go through the shared ModelBuilder

How to Read the Downloaded JSON

• meta.source is expected to be Collada, and meta.upAxis is expected to be Y
• meshes[] shows the result of converting Collada meshes into shared ModelAsset geometry
• By looking at nodes[].animationBindings and animations[].targetSkeleton, you can confirm which clip is connected to which skeleton
• skeletons[].jointOrder stores the joint order referenced by skin weights and is also used when reconstructing through the builder
• Comparing animations[].tracks[].joint with skeletons[].joints[].name lets you confirm whether track names match the restored bone names

Checkpoints

• Confirm that the DAE specified by COLLADA_FILE is converted correctly into shapes, skeletons, and animations

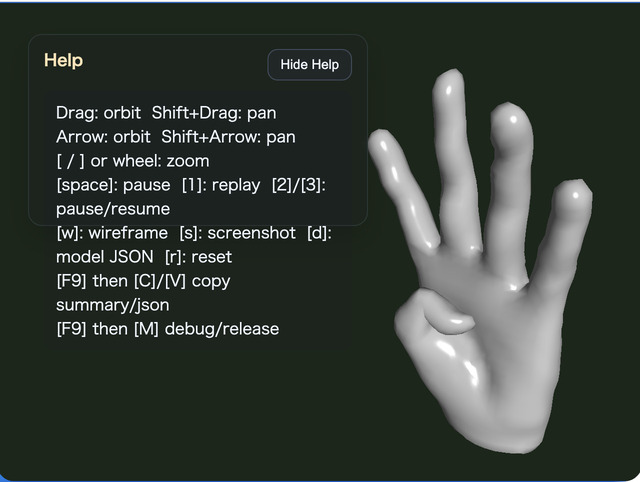

• Confirm that the Help Panel shows file / model / orbit / target / anim / clip0 / wireframe state so the necessary viewer state can be followed on screen
• Confirm that the sample uses the runtime returned by the facade and checks connections through getAnimation() / getAnimationNames() instead of direct animationMap access
• Confirm that the first clip can be restarted by name with restartAnimation(clipId) using the 1 key
• Confirm that 2 / 3 can pause and resume the first clip individually with pauseAnimation(clipId) / resumeAnimation(clipId)
• Confirm that the camera distance is set automatically from the model bounding box so the whole model is not clipped out in the initial framing
• Confirm that the JSON exported with the D key can still be reloaded and displayed by json_loader
• Confirm that Shift + Arrow and Shift + Drag move the camera target in parallel so fine details can be brought to the center
• Confirm that W toggles wireframe, S saves a screenshot, and R returns to the initial framing
• Confirm that the CommandPalette can run animation replay / pause / resume, wireframe, screenshot, JSON export, and camera reset
• Confirm that the Help Panel is used for current values and operation hints, while the CommandPalette is used for changing settings and running commands
• Treat DAE files exported from Blender with an up-axis other than Y-up as outside the loader's assumptions; in that case, orientation mismatch is handled as an asset-side issue

Reading Points for AI / Users

• If "loading succeeds but the clip is not visible", first inspect animations[] and nodes[].animationBindings
• If "a skeleton exists but does not move", inspect the correspondence between skeletons[].jointOrder and animations[].tracks[].joint
• If "you cannot tell which node corresponds to which mesh in the original DAE", use nodes[].colladaMeshIndex
• If "only the displayed position looks suspicious", suspect the loader's model-origin policy and the initial camera placement, and compare bbox-based framing with the pan behavior

Controls

• Drag / arrow keys: orbit camera rotation
• Shift + Drag / arrow keys: pan the camera target
• Mouse wheel / [ / ]: zoom
• Space: pause animation
• 1: replay the first clip
• 2: pause the first clip
• 3: resume the first clip
• W: toggle wireframe
• S: save a screenshot
• D: download the ModelAsset JSON
• R: return the camera to the initial position based on the bounding box
• / or double tap the canvas: open the CommandPalette
