breakout

Overview

This sample builds a simple breakout game with 3D presentation by using webg's basic game-oriented features
It uses WebgApp as the entry point and collects input, HUD, scene phase, game-state management, and display messages into a single processing flow
The board progresses through four states, title / play / pause / result, and switches naturally according to input, remaining bricks, remaining time, and remaining lives
The appearance is close to 2D, but the game is built by generating Paddle / Ball / Brick / Wall as 3D shapes and combining them with 2D-like coordinate management

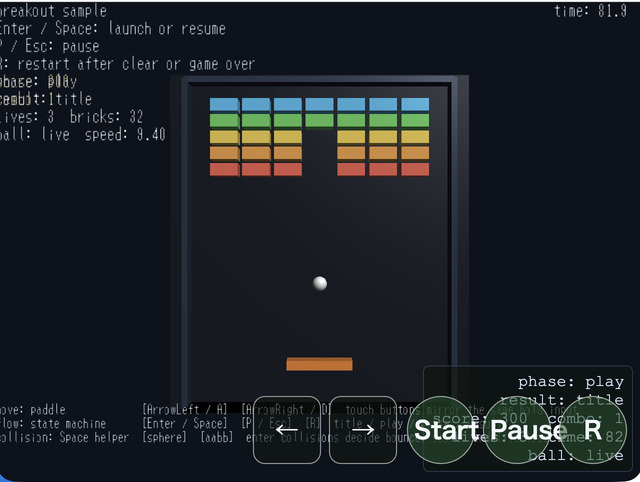

The Message-based HUD shows score, combo, time, lives, phase, and ball state so the game flow can be followed from on-screen information alone
Touch buttons for left / right movement and Start / Pause / R are provided so the same game actions can be performed through both keyboard and touch input

Open ./breakout.html
Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

WebgApp: initializes Screen / Shader / Space / Input / Message / HUD / debug tools together
Sample-side GameStateManager: organizes state transitions for title / play / pause / result
InputController: gathers normalized key names from keyboard and touch input into action names
Touch: enters left / right movement and launch / pause / restart through touch buttons
Shape: creates arbitrarily sized box shapes for the paddle, bricks, walls, backdrop, and related objects
Primitive: generates the sphere mesh for the ball
Space: places each shape as a node and builds the 3D scene for display
Message: displays guide rows, control rows, game HUD, and status
Toast: displays temporary state notifications such as serve, pause, miss, and result

Input is collected into left / right / launch / pause / restart through app.registerActionMap()
left corresponds to ArrowLeft / A, and right corresponds to ArrowRight / D
launch corresponds to Enter / Space, pause corresponds to P / Esc, and restart corresponds to R
The touch buttons ← / → are treated as hold input and used for left-right paddle movement
The touch buttons Start / Pause / R are treated as action input and correspond to launch / pause / restart
Collision shapes are also attached to Ball / Paddle / Brick / Wall, but the actual game judgement in this sample is handled by the sample-side 2D checks using makeBox() and circleIntersectsBox()
Ball movement divides one frame into multiple smaller steps so the ball is less likely to tunnel through walls or bricks even at high speed
Paddle reflection changes direction according to where on the paddle the ball hits
When the ball hits a brick, only one brick disappears and score and combo are updated
When the ball falls to the floor side, lives decreases, and if lives remain the ball is returned to the paddle
When all bricks are removed the game is cleared, when lives reaches 0 it becomes game over, and when time reaches 0 it enters the result state as time up

Confirm that Enter / Space moves the game from title to play and launches the ball from the paddle
Confirm that ArrowLeft / ArrowRight / A / D move the paddle immediately, and that the touch buttons ← / → produce the same movement
Confirm that P / Esc enters pause and that Enter / Space or P / Esc can return to play
During play, confirm that when the ball hits the paddle the reflection direction changes according to the hit position
Confirm that when the ball hits a brick, only one brick disappears and score and combo are updated
Confirm that the ball reflects from the left and right walls and from the ceiling
Confirm that when the ball falls to the floor side, lives decreases, and if lives remain the ball is returned to the paddle
Confirm that removing all bricks, reaching 0 lives, or reaching 0 time enters the result state, and that R returns to the title state
Confirm that the touch buttons Start / Pause / R can also start, stop, resume, and restart just like the keyboard
Confirm that the HUD displays score / combo / time / lives / phase / ball state so the game progress can be followed

ArrowLeft / A: move the paddle left
ArrowRight / D: move the paddle right
Enter / Space: start from the title screen, resume from pause, or launch the ball from the serve-wait state during play
P / Esc: pause, or resume from pause
R: return from result to title
Touch button ←: move the paddle left
Touch button →: move the paddle right
Touch button Start: trigger the launch action
Touch button Pause: trigger the pause action
Touch button R: trigger the restart action

title: initial state. The level is initialized and the sample waits for a start input
play: the state where the actual game progresses. It updates paddle movement, ball movement, reflection, brick destruction, and remaining time
pause: paused state. Game progress stops, but paddle movement input can still be checked
result: finished state. It displays the result of clear / game over / time up and waits for restart input

As a minimal verification sample for game-oriented APIs, this sample prioritizes an easy-to-follow flow for state, input, HUD, and collision checks over flashy visuals
The ball is created with Primitive.sphere(), while the paddle, bricks, walls, and backdrop are created as arbitrarily sized box meshes through createBoxShape() inside the sample
The ball uses a sphere collision shape, and the paddle, bricks, and walls use AABB collision shapes
However, the collision test used for actual game progression is not the enter result from Space.stepCollisions(), but the sample-side simplified 2D check using circleIntersectsBox()
Nodes and collision bodies are registered in Space, but in this sample it is used mainly as the foundation for placing game elements in a 3D scene
The result screen groups clear / game over / time up into the same phase and changes only the reason text
Input processing assumes normalized key names and action names from the WebgApp / InputController side instead of handling raw event.key directly
