billboard

English | 日本語

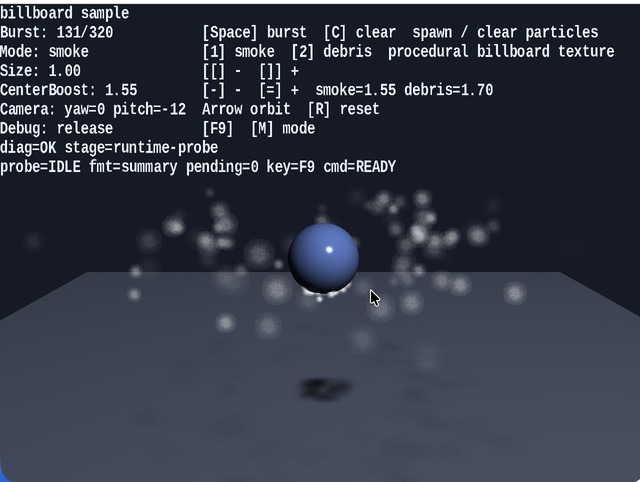

Overview

• This sample uses the Billboard class to render particle expressions that always face the camera
• It uses procedural textures generated by Texture.buildProceduralBillboardTexture, letting you switch between smoke and debris and compare the two looks
• Small spheres and a floor are placed in the background, and a world light together with ground shadow billboards makes the depth relationship of the particles easier to read

How to Run

• Open ./billboard.html
• Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

webg Features Used

• Billboard: instance-based billboard rendering
• BillboardShader: particle shader with position, scale, and color
• Texture: procedural texture generation by combining a circular mask and noise
• Space / Node / Shape / SmoothShader: renders the background 3D scene
• Billboard.drawGround: draws shadow billboards laid down on the ground

Checkpoints

• Confirm that the particles keep facing the front of the camera as it rotates, verifying that the billboard orientation logic is correct
• When switching between smoke and debris with 1 / 2, confirm that the appearance changes significantly even though the particle update formula stays the same, simply because the texture character changes
• When changing centerBoost with - / =, confirm how the density at the center and the appearance of the edges change
• Confirm that this configuration can serve as a practical effect foundation because it keeps the vertex count lower than a mesh-based method with the same number of particles
• Confirm that the spheres receive highlights and that the lighting direction still looks natural when the camera rotates
• Confirm that a faint shadow billboard appears directly below each particle and that the shadow intensity changes with height

Controls

• Space: create a particle burst
• 1: switch to the smoke texture
• 2: switch to the debris texture
• [ / ]: decrease or increase particle size
• - / =: decrease or increase the centerBoost of the current mode
• ArrowLeft / ArrowRight: rotate the camera horizontally
• ArrowUp / ArrowDown: rotate the camera vertically
• R: reset the camera angles
• C: clear all particles
• On smartphones (coarse pointer), touch buttons ← / → / ↑ / ↓ / BURST / 1 / 2 / C / [ / ] / - / + are shown at the bottom of the screen
