animation_state

English | 日本語

Overview

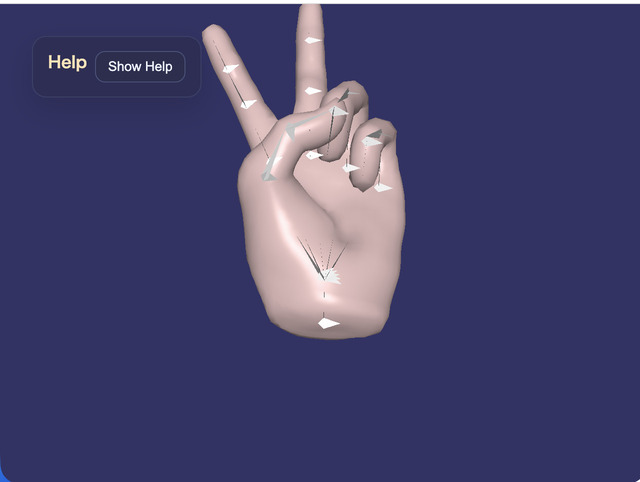

• This sample loads the hand from samples/gltf_loader/hand.glb and demonstrates a setup where each finger pose is still played as an Action, while AnimationState decides which action should be selected at the current moment
• The sample is arranged so that simply switching the desired state with 1 - 6 starts the corresponding action, making it easier to follow the division of responsibilities between state control and action playback
• The operation guide is shown in a collapsible help panel at the upper left by using buildHelpPanelOptions() and showOverlayPanel(), while the current state is displayed separately on the canvas HUD

How to Run

• Open ./animation_state.html
• Use a browser with WebGPU support, and check the help panel and HUD together with the sample when needed

webg Features Used

• WebgApp: initializes Screen / Shader / Space / Input / Message together and loads hand.glb with loadModel(..., { format: "gltf" })
• Skeleton / Bone: used for bone display and bone rotation
• Action: handles pattern playback and action playback for the finger poses
• AnimationState: a minimal state machine that decides which action to start from the desired state and transition conditions
• Each pose action is treated as a one-shot playback, and the last pose reached remains visible until the state changes
• buildHelpPanelOptions() + showOverlayPanel(): builds the standard help panel at the upper left and toggles the visibility of the operation guide
• Message: displays the HUD and state information

Checkpoints

• Confirm that the help panel appears at the upper left, that pressing Hide Help leaves only the Show Help button, and that Show Help restores the panel
• Confirm that the HUD shows desired state / current state / current action / current pattern / transition, so you can follow the separation between state transitions and action playback directly on screen
• When P enables auto cycle, confirm that the desired state changes after a fixed interval and that the state machine keeps switching actions continuously
• With the current hand.glb, confirm that the hold ranges correspond to 0: rest, 1: fist, 2-3: one finger extended, 4-5: scissors, 6-7: three fingers extended, 8-9: four fingers extended, 10-11: open hand, and 12-13: fist

Controls

• Hide Help / Show Help in the upper-left help panel: show or hide the operation-guide body text
• W / S: rotate the model around the X axis
• A / D: rotate the model around the Y axis
• Z / X: rotate the model around the Z axis
• J: print the bone list to the console
• E / R: rotate the selected bone around the X axis
• Y / U: rotate the selected bone around the Y axis
• C / V: rotate the selected bone around the Z axis
• N / M: switch mesh selection backward or forward
• O / I: hide or show the selected mesh
• 9 / 0: show or hide bones
• 1 - 5: change the desired state to pose1 - pose5
• 6: change the desired state to pose0
• /: advance to the next desired state
• @: restart the current state
• P: toggle auto cycle on or off
• 7 / 8: toggle rendering on or off
• K: enable delayed rendering mode
• Q: stop the sample

Notes

• AnimationState does not hold clip data itself; it is a thin control layer that receives existing Action objects as controllers
• This sample uses only the connection state.action -> Action.start(actionId) and does not handle cross-fade or blend
